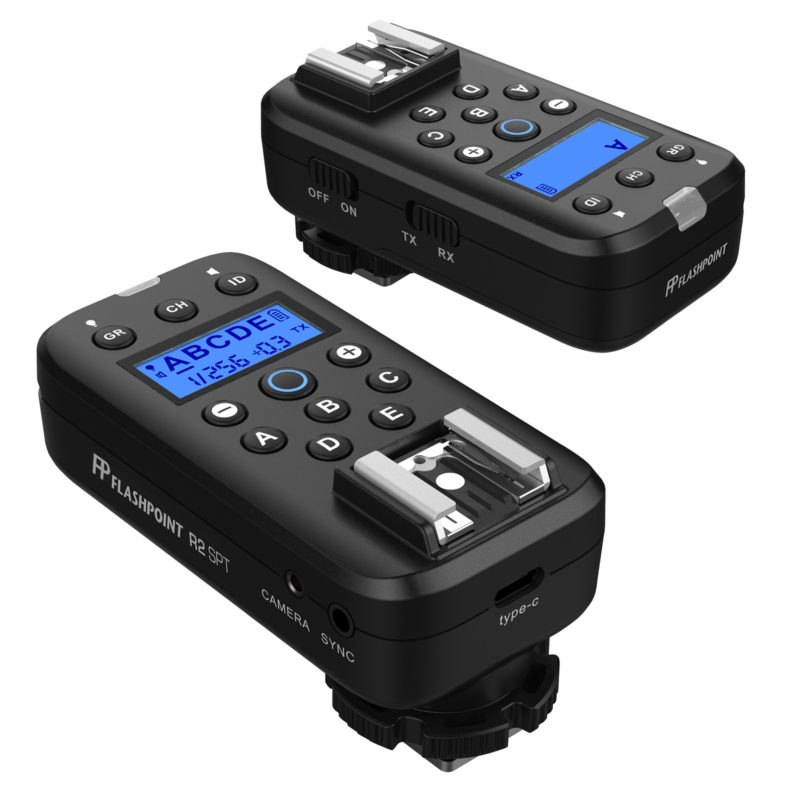

FLASHPOINT R2 SPT Single Firing Pin Transceivers – Now Available!

FLASHPOINT R2 SPT



Flashpoint have released the new R2 SPT Single Firing Pin Transceivers, the first simple universal flash trigger set directly compatible with the Flashpoint R2 / Godox X 2.4 GHz Radio Flash System!

And the R2 SPT Transceiver are available now from Adorama for just $24.95 each, or $32 a pair.

The R2 SPT Transceivers were designed to fill a number of commonly requested functions, either used as a stand alone flash trigger set, or expanding on the Flashpoint R2 / Godox X Flash System



  • Simple Manual Flash Trigger Set – Also compatible With Flashpoint R2 / Godox X System
  • Inexpensive Receiver – Universal To Fire Non Flashpoint / Godox Lights
  • Single Firing Pin Transmitter – Universal To Work On Any Camera With Standard Hotshoe
  • Remote Shutter Release – Combined Shutter & Flash Firing (TRX Mode)
  • Increased Range – Up To 150m, or 300m Using R2 SPT as both TX & RX



The R2 SPT Transceivers were developed exclusively by Flashpoint, and manage to provide a number of convenient features, as well as high build quality and performance, all into an economical package.

For people looking for a simple manual flash trigger set, the R2 SPT work with just about any camera and flash, and being directly compatible with the most common flash system makes the R2 SPT an easy choice.

And many people already using the Flashpoint R2 / Godox X System may well find having at least one R2 SPT on standby pretty handy as well. Whether its for shutter release, stronger signal, or universal camera or flash firing etc when needed.

NOTE – The R2 SPT will provide Remote Manual Power Control when acting as a Transmitter to R2 enabled flashes, NOT when acting as a receiver though.

FLASHPOINT R2 SPT

FLASHPOINT R2 SPT FEATURES



  • Flashpoint R2 / Godox X – 2.4GHz RF Radio System
  • Range – To 300m (R2 SPT as TX & RX)
  • Range – To 150m (Between R2 SPT and R2 / Godox X System)
  • Flash Modes – Manual
  • Manual Flash – 1/256 – 1/1 Output (1/3rd Increments)
  • APP Mode (Sends Fire Signal Only)
  • Remote Modelling Light Power (Global ON/OFF)
  • Remote Beep Control (Global ON/OFF)
  • Backlit LCD Display
  • 5 Individual Group Buttons
  • Auto Memory Function
  • Wireless Shutter Release (In Sync With Flash – TRX Mode)
  • Type-C USB Port for Firmware Updates
  • 3.5mm Sync Port
  • 2.5mm Shutter Release Port
  • Powered by 2 AA Batteries



The Flashpoint R2 SPT are Transceivers, with the Transmitter and Receiver units in this case being exactly the same device. A manual switch on the side simply assigns the unit as Transmitter (TX) or Receiver (RX) as required.

Being Single Firing Pin only, the R2 SPT do not provide TTL or HSS, though this allows them to work universally, as well as providing longer range.

Acting as a Transmitter to R2 enabled flashes, the R2 SPT will provide Remote Manual Power Control. (Not when acting as a receiver though).



FLASHPOINT R2 SPT



Acting as a Transmitter and Receiver Set, the R2 SPT will work with just about any camera and speedlights having a standard hotshoe and foot. Studio lights will require an appropriate sync cord to connect with the receiver.

The R2 SPT simply fire the remote flashes in sync with the camera shutter.

Remote Power Control is not available in this situation, though each of the 5 individual Groups can be turned ON and OFF remotely from the R2 SPT transmitter.



FLASHPOINT R2 SPT



Though an R2 SPT acting as a Transmitter, can fire and control the Remote Manual Power Levels of Flashpoint R2 / Godox X System flash units. As well as turn the Modelling Light and Beep ON and OFF remotely.

Radio range is increased to 300m between R2 SPT transceivers, or up to 150m between R2 SPT and R2 / Godox X System enabled flashes or transmitters.



FLASHPOINT R2 SPT

RX MODE

Functioning as a Receiver unit, the R2 SPT provide an economical way to simply fire you existing non-Flashpoint/Godox studio light and speedlites in sync with the camera.

Whether using another R2 SPT as the transmitter, or in combination with your Flashpoint R2 / Godox X System Transmitter or Master flash.

(An optional sync cord is required to attach studio lights).

The R2 SPT provide a 300V safe trigger voltage on both the Sync Port and hotshoe, so even most older flash units should be safe to use connect to the receiver.

NOTE – In RX Mode all buttons on the R2 SPT (except the SET / TEST Fire Button) require a long press to have any effect. This is so that settings can not be bumped and changed accidentally.



FLASHPOINT R2 SPT



TX MODE

Functioning as a Transmitter unit, the R2 -SPT (being single firing pin) are universal to work on most any camera having a standard hotshoe.

The R2 SPT feature 5 individual quick access Group buttons – A / B / C / D / E .

in TX Mode the R2 SPT provide Remote Manual Power Control of Flashpoint R2 / Godox X System flash units. As well as turning the Modelling Light and Beep On and Off remotely.

Only Remote Group Control (ON / OFF) is available with R2 SPT as receiver.

NOTE – Double pressing a Group button turns that Group ON and OFF, and Holding a Group button turns that Group on only (which is consistent with the Flashpoint R2 PRO II transmitter functionality).



FLASHPOINT R2 SPT

APP MODE

When set to TX Mode, the R2 SPT also feature an APP Mode.

In APP Mode the transmitter only sends a fire signal to the remote flash units and other R2 SPT Receivers. No Remote Power Levels or functions are communicated.

To enter APP mode, while in TX Mode, hold the “GR” button for 3 seconds until “APP ” appears on the LCD display.



FLASHPOINT R2 SPT



The APP mode allows another Flashpoint R2 / Godox X transmitter unit, or Mobile device with Godox APP installed, to be used in hand to control the power levels etc of the remote flashes.

These alternate Master units may offer a more detailed interface and adjustments, or simply be easier to access when the camera is mounted high on a tripod etc.

NOTE – The R2 SPT do not have Bluetooth built-in. So a Bluetooth enabled device like the R2 PRO II or A1 / M1 is still required if you want to use the smartphone APP.



FLASHPOINT R2 SPT



SHUTTER RELEASE – TRX MODE

The R2 SPT transceivers provide a shutter release function which can be used to remotely fire a camera’s shutter.

And in TRX Mode the R2 SPT also provide the more complex function of firing both a remote camera shutter, and remote flash units in sync together, and with just one transceiver unit attached to the camera.

(Where previously the Godox X1 / Flashpoint R2 receivers required a second device (separate transmitter & receiver units) attached to the camera to fire both camera and remote flashes).

To fire both remote camera shutter and flashes, the R2 SPT transceiver must be set to TRX mode, and both mounted on the camera’s hotshoe, as well as connected via an appropriate shutter release cord.

To set the R2 SPT transceiver to TRX mode, set the switch to RX mode, and hold the SET button for 3 seconds until “TRX” is show on the LCD display.

FLASHPOINT R2 SPT



Using a second R2 SPT transceiver (set to TX mode) in hand as the remote shutter release button as shown above, provides the most range (up to 300m).

Though any of the Flashpoint R2 / Godox X System transmitter or master flash units can also be used as the shutter release in hand, as shown below.

So effectively owning even just one R2 SPT transceiver could be very hand for many people already using the Flashpoint R2 / Godox X Flash System.

Though shutter release range would be more limited to approximately 150m in the scenario bellow.



FLASHPOINT R2 SPT

NOTE – There is no TTL or HSS possible with only an R2 SPT transceiver attached to the camera acting as TRX shutter release.

If TTL or HSS is required with remote shutter release, a TTL transmitter must always be mounted on the camera hotshoe, and basically a second pair of R2 SPT would be required as a separate remote shutter release set.



Also one issue Flashpoint ran into while developing the R2 SPT transceivers was that the shutter release unit in hand would unwantedly test fire the remote flashes early as you tried to release the camera shutter.

To avoid this the TRX mode was set up so that the shutter release remote in hand must be set to one Channel higher, than the TRX unit attached to the camera and remote flashes are set to (as illustrated below).

This way the TX in hand can not directly communicate with the remote flashes, and fire them early.

Though the TX in hand can be briefly set back one Channel to directly test fire the lights while taking light meter readings, and remotely adjusting power levels.



FLASHPOINT R2 SPT



BUTTON FUNCTIONS

Although not the ideal situation, as more useful functionality was ultimately squeezed into the R2 SPT transceivers than originally intended, access to a few of the functions is not obvious unless you know actually where they are –



– APP Mode – In TX Mode, Hold the “GR” button for 3 seconds to enter, and release.
– TRX Mode – In RX Mode, Hold the “SET / TEST” button for 3 seconds to enter, and release.

– LCD Backlight Stay On – Hold Group buttons A & C for more than 2 seconds to enter, and release.
– Factory Reset – Hold the “-” and “+” buttons for more than 2 seconds.

– In TX Mode – Double pressing a Group Button – Turns that Group ON and OFF.
– In TX Mode – Holding a Group Button – Turns that Group on only.



Also accessing and adjusting Channel and ID can take a little getting used to. Its intentional that you must hold the Channel and ID buttons for 2 seconds before accessing them so that they are not changed accidentally.

And because a speedlite mounted on the transceiver hotshoe in RX Mode can block access to the Group Letter, “-” , “+”, and “SET” buttons, its also possible to adjust the Group, Channel, and ID, using only the corresponding “GR”, “CH”, and “ID”, buttons, by pressing them multiple times to scroll through to the desired setting.



PASS THROUGH HOTSHOE

Although the R2 SPT transceiver does have an active (single pin) hotshoe available on top when used as a transmitter on the camera hotshoe, this hotshoe was predominantly designed for receiver use.

As any flash or transmitter mounted on top of the R2 SPT transceiver will likely block access to the transmitters display and master interface.



FLASHPOINT R2 SPT SPECS



MODEL R2 SPT
Compatible Cameras Universal for cameras with a standard hotshoe.
Power Supply 2 x AA Batteries
FLASH EXPOSURE CONTROL
Manual Flash YES
FUNCTION
Manual Power Contol 1/256 – 1/1 (1/3 stop increments)
APP Mode Sends Only Fire Signal
Modelling Lamp ON / OFF (Global)
Beep ON / OFF (Global)
Memory Function YES
Shutter Release Using a shutter release cable connected to camera
Firmware Update Upgrade via Type-C USB port
WIRELESS FLASH
Transmission Range Up to 150m
Up to 300m (with R2 SPT as TX & RX)
Built-in Wireless 2.4GHz R2 Radio
Modulation Mode MSK
Channels 32
Wireless ID 01-99
Groups 5
PORTS
Shutter Port 3.5mm port
Sync Port 2.5mm port
USB Port Type-C USB port for firmware updates
OTHER
Safe Sync Voltage 300V (sync port & hotshoe)
Size 46 x 92 x 48mm
Weight 75g (without batteries)





FLASHPOINT R2 SPT



PRICE AND AVAILABILITY



The Flashpoint R2 SPT transceivers are available now –

Single $24.95 – Adorama, Amazon.

Pair $32.00 – Adorama, Amazon



Shutter Release Cords –

Canon N3 – Adorama, Amazon
Canon 2.5mm – Adorama, Amazon
Nikon 10 Pin – Adorama, Amazon
Nikon DC-2 – Adorama, Amazon
Sony – Adorama, Amazon
Sony Multi – Adorama, Amazon
Olympus – Adorama, Amazon
Panasonic – Adorama, Amazon

Sync Cord –

3.5mm to 3.5mm/6.3mm – Adorama, Amazon



Flashpoint – Website

.
